Sheet metal stamping is a crucial manufacturing process to shape flat metal sheets into a specific form using specialized machinery. This technique is used in numerous industries, from automotive and aerospace to electronics and appliances.

To satisfy each industry’s unique demands, special sheet metal stamping machines of various types are available to handle different materials and complex designs. These machines are essential in mass production, enabling manufacturers to produce parts quickly and cost-efficiently.

In this post, we will explore the common types of sheet metal stamping machines and their applications.

How Does Sheet Metal Stamping Machine Work?

Metal stamping machines operate on a straightforward principle: they use a large tool and die, driven by a machine capable of exerting tremendous force rapidly, to shape metal objects as desired.

These machines typically perform several processes:

  • Metal flattening: This basic operation smooths or thins metal objects at specific points.
  • Wire swaging: Similar to flattening, but used for wires rather than sheet metal. It narrows one end to facilitate insertion into an opening.
  • Metal piercing: The tool and die punch through the metal, creating openings for joining multiple pieces.
  • Metal coining: Instead of making holes, this process presses the sheet metal into specific shapes, like coins.

Metal stamping machines work with cold, rigid metal, necessitating extreme force to achieve the desired results.

What are the Types of Sheet Metal Stamping Machines?

Each sheet metal stamping machine is designed to perform a specific task in the manufacturing process. When understanding these different types of machines, you are more likely to select the right equipment for your stamping needs. Below are the common types of sheet metal stamping machines:

  • Hydraulic metal stamping press

These presses use fluid pressure to generate force, suitable for deep drawing and forming operations on thick materials. They offer precise control over the stamping process, while they maintain consistent pressure throughout the stroke.

Hydraulic presses are known for their versatility and ability to handle large parts. They also have adjustable speed and pressure, allowing for the complex part formation and reduced springback in materials.

  • Metal embossing press

Embossing presses are specialized machines to create raised or recessed designs on metal surfaces. They use die sets to apply pressure to form certain patterns, logos, or textures on the metal.

These presses are crucial in industries requiring aesthetic appeal, such as automotive interior components, signage, and decorative metalwork.

  • Stamping die makers

A stamping die is used to cut and shape metal sheets with precision. It is a special tool to ensure accuracy in sheet metal stamping processes due to its cutting and forming sections, known as tool steel, made from highly hardenable steel or hard wear-resistant materials, like carbide.

Though stamping is a cold-forming operation, heat is generated while the cutting and forming processes come with friction, making the dies very hot.

There are some different types of stamping dies, grouped into robotically-loaded line dies, manually-loaded line dies, fully-automated progressive dies and fully-automated transfer dies.

  • Pneumatic tin stamping machines

These machines use compressed air to power their operation. They are suitable for lighter gauge materials and high-speed production of small parts.

Pneumatic stamping machines are often more energy-efficient than their hydraulic counterparts. At the same time, they can achieve higher cycling speeds. They are commonly used in industries requiring rapid production of small, precise components, such as electronics or jewelry.

  • Mechanical bending machines

The most common machine type is press brakes that use a punch and die to create precise bends in sheet metal. These machines are crucial for creating shapes, brackets, or enclosures, the components that require accurate angles and bends. Moreover, advanced CNC-controlled bending machines can perform multiple bends in sequence to reduce human intervention.

What are the Types of Sheet Metal Stamping Machines?

What are the Advantages and Disadvantages of Modern Sheet Metal Stamping Machines?

Before deciding to employ modern sheet metal stamping machines, you might need to know the pros and cons of these machines.

Pros

  • Enhanced Productivity and Efficiency

Modern stamping machines offer superior speed, significantly boosting output and reducing production time. This increased productivity leads to lower manufacturing costs and minimizes material waste while simultaneously improving production efficiency.

  • Cost Reduction and Quicker Market Entry

These machines operate at high speed, helping cut labor and material expenses. In addition, their fast production cycles enable manufacturers to introduce products to the market more swiftly.

  • Improved Precision and Consistency

Advanced stamping technology ensures highly accurate and uniform results. It is crucial for modern industries, like automotive and aerospace, where machines can deliver exceptional precision and consistency.

  • Versatility in Material Processing

Contemporary stamping presses can handle a wide range of materials, including metals, plastics, and composites. This versatility helps produce diverse items, from simple metal components to plastic parts.

  • Eco-Friendly Operations

Modern stamping presses are more energy-efficient. They produce less waste compared to traditional methods. They have rapid operation, contributing to a more environmentally sustainable manufacturing process.

Cons

  • Substantial Initial Investment

Modern high-speed stamping equipment demands significant upfront capital. Equipping new machines or upgrading existing ones is quite expensive. However, productivity and efficiency can justify this initial expense in the long run.

  • Reduced Design Flexibility

High-speed stamping processes are optimized for large-volume production of consistent designs. Adapting the process for design modifications can be time-intensive and expensive, potentially limiting versatility in product development.

  • Heightened Safety Risks

The machines create immense force, being potential hazards if they are not managed properly. It is crucial to ensure strict adherence to safety protocols that can prevent risks and protect workers.

  • Requirement for Specialized Operator Training

Operators must undergo specialized training to mitigate safety concerns and ensure consistent product quality. This requires additional time and resources, but it is essential for maintaining workplace safety and product uniformity.

What Are The Applications of Sheet Metal Stamping Machines?

Sheet metal stamping is widely used in various industries, including automotive, industrial machinery, consumer electronics, aerospace, electrical equipment, and telecommunications.

The automotive sector is currently the primary market of metal stamping, with over a third of industry revenue in recent years, according to Grand View Research. Meanwhile, the consumer electronics industry is rapidly increasing its use of this technique.

This trend suggests that most businesses using consumer electronics in their operations are indirectly benefiting from products manufactured by metal stamping machines.

Smaller-scale industries are jewelry production and household appliance manufacturing. However, they are leveraging more metal stamping technology to scale up their production.

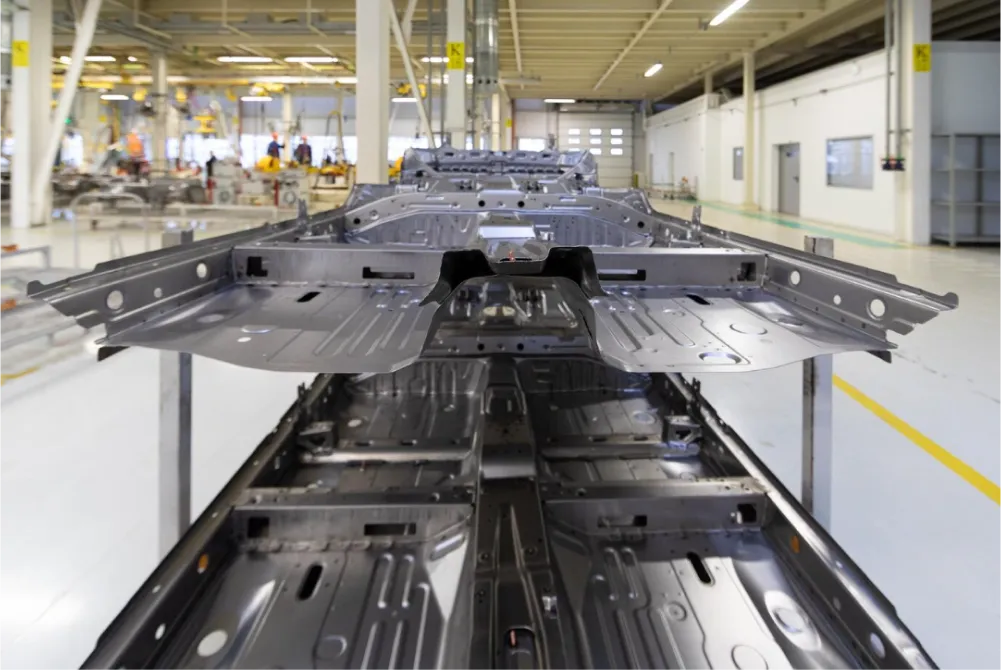

What Are The Applications of Sheet Metal Stamping Machines?

How Can You Select a Metal Stamping Machine?

When choosing a stamping machine or supplier, consider these key factors:

  • Technical Specifications

When selecting a metal stamping machine, match the specifications to your production needs. Consider required punching pressure, deformation work, die structure, and product size requirements. A machine aligned with these specs ensures optimal performance and quality. Mismatches could lead to inefficiencies or poor outputs. Carefully evaluate these technical aspects to choose a machine that will deliver the best results for your specific manufacturing process.

  • Production Capacity

The ideal stamping machine balances high output with efficient resource use. Look for a machine that meets or exceeds your volume requirements while minimizing energy consumption. Consider cycle time, automation capabilities, and long-term productivity gains against the initial investment. The right machine should offer a fair price-to-performance ratio, enabling you to meet production targets cost-effectively while allowing room for future growth.

  • Maintenance Efficiency

Choose a stamping machine known for reliability and ease of maintenance to minimize costly downtime. Prioritize models offering high output, large batch capabilities, and operational flexibility. Easy maintenance procedures reduce upkeep time and expertise needed. A machine combining these features can significantly enhance overall operational efficiency, keeping your production line running smoothly and reducing long-term maintenance costs.

Sheet Metal Stamping Service of Fischer ASIA

Fischer ASIA excels in high-quality solutions, using modern sheet metal stamping machine ranges. Our meticulous approach to processing customized design and evaluation ensures error-free manufacturing, resulting in superior products tailored to your specific needs.

Sheet Metal Stamping Service of Fischer ASIA

We maintain stringent quality control over our suppliers by sourcing premium raw materials to guarantee consistent excellence. Our state-of-the-art quality control equipment includes digital slide gauges, custom-designed go and no-go gauges, and cutting-edge Coordinate Measuring Machines (CMM). This advanced technology, combined with our expertise, allows Fischer ASIA to offer unparalleled precision and reliability in sheet metal stamping services, making us the ideal partner for your manufacturing requirements.

FAQs

1. What materials can sheet metal stamping machines work with?

Several widely used alloys serve as materials for precision metal stamping across various industries. These include:

  • Aluminum alloys
  • Brass alloys
  • Copper alloys
  • Nickel alloys
  • Steel and stainless steel variants

Selecting suitable raw materials is as crucial as choosing the right machining process, even with the advancement of metal stamping tools. Different metals and alloys possess unique properties, and the choice between common alloys or specialty metals depends on the part’s specific requirements and intended use.

2. What are the standard maintenance requirements for sheet metal stamping machines?

Key maintenance tasks for metal stamping machines typically include:

  • Lubricating mobile components
  • Examining and replacing worn elements
  • Cleaning dies and press parts
  • Adjusting sensors and auxiliary equipment

Implementing a consistent maintenance schedule helps avoid unexpected failures and production interruptions, maintaining efficient and dependable part production. It’s also advisable to develop protocols for addressing frequent issues and troubleshooting operational problems as they occur.

3. Why should you outsource your metal stamping?

To focus on your core competencies, the best solution is to outsource portions of your supply chain to experts. The professionals with a demonstrated track record of quality will help you gain more flexibility and ensure higher quality. Outsourcing your metal stamping will help you leverage the expertise that you do not have in-house while reducing significant overhead costs.
